Green-Mode PWM Controller below 100mW Standby Power

Description

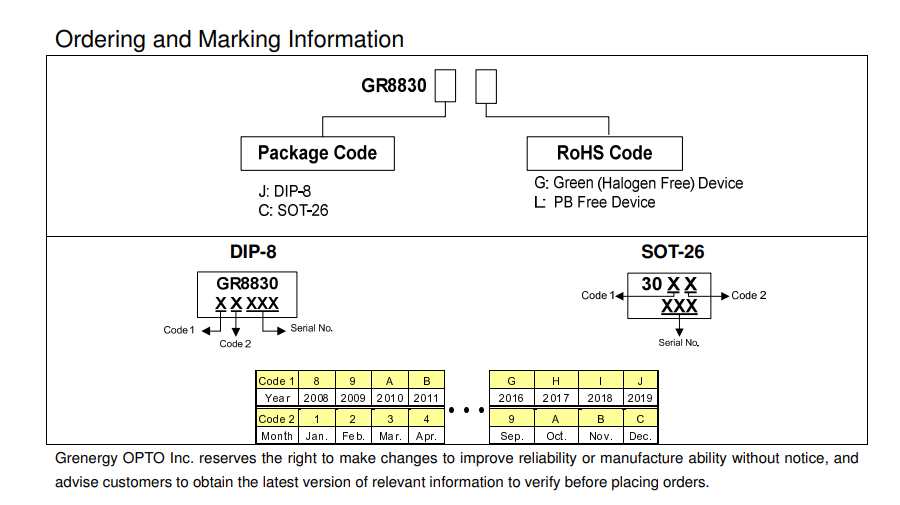

The GR8830 is a highly-integrated, low startupcurrent, current mode PWM controller withGreen-mode function. This function enables thepower supply to easily meet even the strictestpower conservation requirements. The integratedfunctions also include the leading-edge blankingof the current sensing, internal slopecompensation, cycle-by-cycle peak currentlimiting, and soft start. OLP, OCP and OVPprovide protection performance for fault conditions.For protecting the external power MOSFET frombeing damaged by supply over voltage, theGR8830 OUT pin voltage is clamped to about13V.The GR8830 improves the performance andreduces the cost of power supplies. It is with bothDIP-8 and SOT-26 package.

Features

Current mode PWM control

Standby power below 100mW solution

Under voltage lockout (UVLO)

Non-audible-noise green-mode control

Programmable switching frequency

Internal leading-edge blanking

Internal slope compensation

Internal soft start

Gate output voltage clamp

Jitter and soft driving for reducing EMI

Over-voltage protection (OVP) on VCC pin

Over-load protection (OLP)

Over-current protection (OCP) on CS pin

Applications

Switching AC/DC power adaptor

Battery charger

Open-frame SMPS
